Chart Wizard Properties
You can use the Chart Wizard dialog box to create a chart report. This topic describes the properties in the dialog box.
This topic contains the following sections:
Back
Select to return to the previous screen.
Next
Select to go to the next screen.
Finish
Select to create the chart and exit the wizard.
Cancel
Select to close the wizard without creating a chart.
Help
Select to view information about the dialog box.
Data Screen
Select the business view or dataset you want to use to create the chart. Server hides this screen when there is only one business view or dataset in the current catalog.
Available Data Resources
Select a business view or dataset in the current catalog, which you use to create the chart.
- Inherit from the Parent
Select if you want the data component to inherit the dataset of the parent object. Available only when you are inserting the data component into any of the following panels in a banded object: banded header panel, banded footer panel, group header panel, and group footer panel.

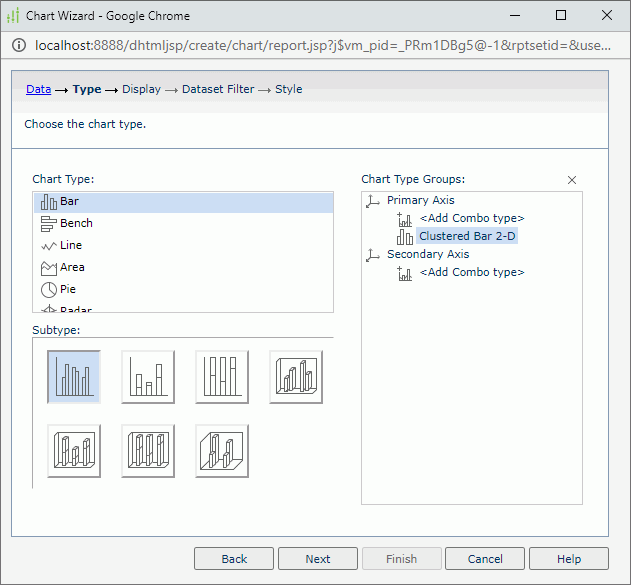

Back to topType Screen
Specify the type of the chart.
Chart Type
Select a chart type.
Subtype
Select a subtype of the selected chart type.
Chart Type Groups
Server lists the subtype you selected for the chart.
If you want to create a combo chart, select <Add Combo Type> under Primary Axis or Secondary Axis. Server adds an additional subtype. To change the additional subtype, select it, then select another chart type and its subtype respectively. To add more subtypes, repeat the procedure.
Remove button
Select to remove the selected subtype. At least one type should remain for the Primary Axis to create the chart.
Display Screen
Specify the fields you want to display in the chart.
Resources
Server displays the view elements in the selected business view or the business view of the dataset. Select one non-folder resource, and then select the Add button
beside the Category, Series, or Show Values box to add it into the corresponding box.
Category
Server lists the group object
you want to display on the category axis of the chart. If you do not want the current resource, select it, and then select the Remove button
on the left to remove it.
Series
Server lists the group object you want to display on the series axis of the chart. If you do not want the current resource, select it, and then select the Remove button on the left to remove it.
Show Values
Server lists the aggregation objects
and additional values
you want to display on the value axis of the chart.
For a combo chart, specify resources for each chart type. To add a resource to a chart type, first select the resource and the chart type separately, then select the Add button .
For an additional value, you can select the Edit button
to open the Edit Additional Value dialog box.
To remove a resource from the box, select it and select the Remove button on the left.
Order/Select N
Select to open the Order/Select N dialog box to define the sort order and Select N condition in the chart.
Dataset Filter Screen
Specify the filter which you want to apply to the dataset of the chart.
Server displays the predefined filters of the business view in the Filter list. You can choose one of them to apply. If you prefer to define a filter on your own, select User Defined from the list, and then define it.
If the selected business view contains parameters, Server displays the Enter Parameter Values dialog box for you to specify the parameter values before displaying the Dataset Filter screen.
For more information, see the Edit Dataset Filter dialog box.
Style Screen
Select a style for the chart. Server hides this screen when there is only one style available.
Style
Select the style you want to apply to the chart.
Inherit Style
Specify to take the style of the parent component. The property is available when you insert the chart into a banded object or table.
Preview
Server displays a diagram to illustrate the effect of the selected style on the component.
